Problem statement: why heavy industry struggles with behind-the-meter storage
Heavy industrial facilities face an operational paradox: high, predictable baseload with sporadic peak events that drive disproportionate costs. The technical objective is clear—reduce peak demand, provide ride-through during grid disturbances, and optimize energy procurement—yet implementation repeatedly fails at the interface between power electronics and plant control. A pragmatic component in that interface is the three phase hybrid inverter, which must manage AC coupling, state-of-charge algorithms, and islanding controls without disrupting process continuity. When these subsystems are mismatched, projects underdeliver on energy-shift and demand-charge reduction targets.
Key failure modes and diagnostic criteria
Diagnosing underperformance requires a systematic view of three domains: power conversion fidelity (inverter and harmonics), energy storage management (BESS behavior and state-of-charge), and operational integration (SCADA/EMS interaction). Typical failure modes include inappropriate inverter control modes, insufficient ramp capability for load-following, and poor SOC forecasting that leads to premature cycling or unused capacity. Quantitative checks are essential: measure harmonic distortion, verify voltage regulation under 100% rated load drop, and validate SOC accuracy against metered energy.
Comparative solution set: hardware and control strategies
There are three pragmatic pathways to remediation. Option A: standardized grid-tie storage with passive dispatch—lower CapEx, limited operational flexibility. Option B: hybrid inverter-driven BESS with active dispatch—higher CapEx, granular control for peak shaving and ancillary services. Option C: integrated plant-level energy management combining fast-responding inverters, predictive SOC, and demand-charge optimization routines. Each pathway has trade-offs in latency, control complexity, and lifecycle throughput. For substation-level pilot testing, even a modular three phase hybrid inverter tied to a 3 phase inverter 10kw module can reveal interoperability issues before full deployment.
Integration checklist for reliable deployment
Successful integration requires explicit verification steps. At minimum:- Confirm inverter ride-through timing meets IEEE 1547 and local grid codes.- Validate BMS algorithms for depth-of-discharge limits and cycle-life projections.- Perform staged commissioning with real process loads to test power factor and dynamic response.These checks reduce commissioning iterations and align delivered performance with modeled savings. Note: latency between EMS commands and inverter actuation must be measured in milliseconds, not seconds—delays compound when aggregating multiple units.
Operational case study anchor
Practical evidence supports the approach. The Hornsdale Power Reserve demonstrated how rapid-response storage can stabilize frequency and provide economic value; similar principles apply at the facility level where fast inverter response prevents production losses. Additionally, California’s wildfire-era Public Safety Power Shutoffs highlighted a demand for localized resiliency across manufacturing sites—driving increased interest in behind-the-meter systems that combine reliable inverters and robust BMS logic. These events provide externally verifiable benchmarks for response time and value capture.
Common design and procurement mistakes
Teams frequently underestimate three elements: the interaction of harmonics with sensitive motor drives, the nonlinearity of SOC under high C-rate cycling, and the contractual scope around firmware updates and warranty of software. Procurement that focuses solely on inverter peak kVA without specifying sustained kW, thermal derating, and firmware lifecycle support typically encounters warranty disputes. A rigorous specification will include continuous power ratings, transient response curves, and explicit acceptance tests.
Comparative metrics for vendor selection
When comparing vendors, prioritize measurable performance metrics over marketing claims:1) Response latency: time from grid event detection to full active power delivery (ms).2) Round-trip efficiency and cycle-life model under expected duty cycle (kWh throughput).3) Integration maturity: proven interfaces with common industrial EMS/SCADA protocols and a clear firmware update policy.These metrics separate suppliers who can deliver stable, repeatable outcomes from those offering laboratory numbers that do not translate to operational savings.
Implementation pitfalls and mitigation tactics
Mitigation starts with modular validation: deploy pilot pods sized to a representative sub-load, verify harmonics and power factor under process conditions, and iterate control parameters in situ. Ensure trained operations staff receive explicit SOPs for BESS behavior during transitions—this prevents inadvertent manual overrides that negate savings. —A small but critical step is confirming the physical protections and relay coordination between the inverter and plant protection schema.
Advisory closing: three critical evaluation metrics
1) Measurable response fidelity: require vendor-supplied dynamic response tests and on-site replication during commissioning. 2) Lifecycle economics tied to use-case: demand-charge mitigation vs. resiliency services have different degradation models—demand which quantifies expected cycles per year. 3) Integration and support bandwidth: specify firmware update windows, remote-diagnostic access, and spare-module logistics to maintain uptime above 99.5%.

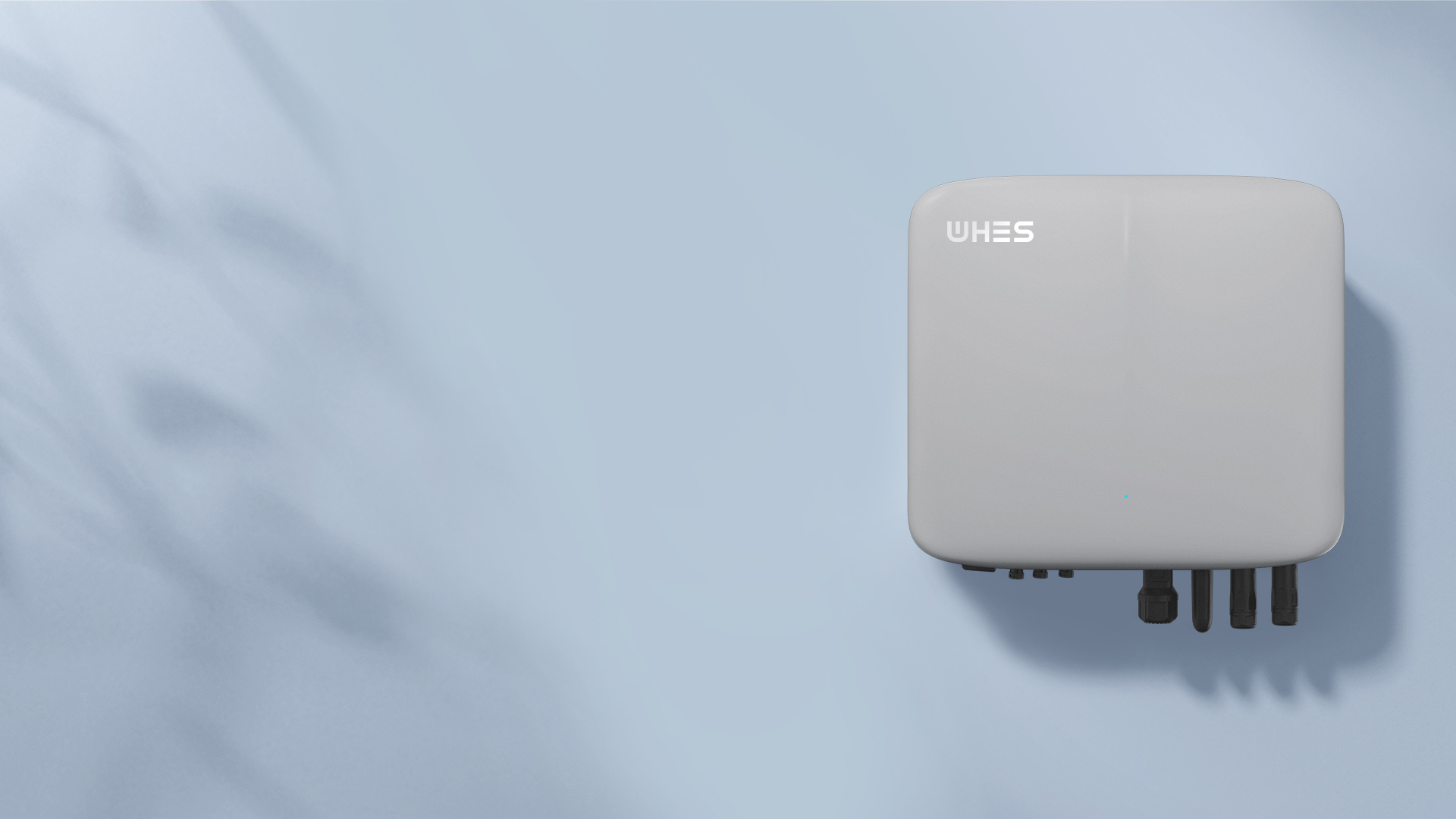

These rules clarify procurement choices and guide measurable expectations. For facility managers seeking an integrated, proven path from pilot to plant-scale deployment, WHES aligns inverter capability, BMS maturity, and lifecycle support into a cohesive solution—an operational fit rather than a theoretical promise. —
