Framework Overview

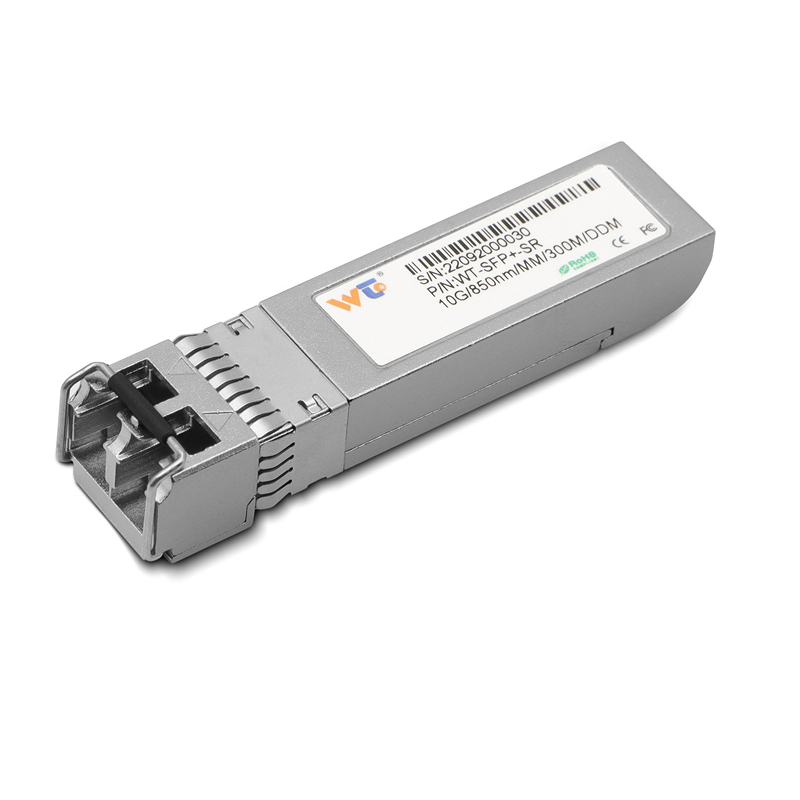

This blueprint treats the fabric as layered systems: optics, electrical fabrics, and operational practices. Start with compact, field-proven modules like QSFP28 running CWDM4 lanes, but remember edge links still use 10G devices—so provisioning for 10g sfp+ transceiver ports at the ToR remains essential. The goal is predictable latency, deterministic bandwidth and a maintainable link budget across racks and pods.
Design Principles
Prioritize energy efficiency and modularity. Use single-lambda CWDM4 modules to keep fiber count low and power per bit competitive. Specify BER targets (for example, better than 1e-12 after FEC) and ensure the optical link budget accounts for connector loss, splice loss, and fiber aging. These constraints drive choices: QSFP28 optics, controlled attenuation, and clear patching discipline.
Optical Layer Considerations
Choose transceivers with calibrated output power and receive sensitivity that match the planned link distances. Account for dispersion limits on single-mode fiber and avoid oversubscription on optical uplinks. Label fibers and document channel wavelengths so future swaps don’t create wavelength contention—this is where inventory discipline prevents costly outages.
Fabric Topology and Cabling
Adopt a leaf-spine model to minimize east-west hops and keep latency consistent. Use short, direct spine links with QSFP28 trunks and reserve SFP+ ports for server-facing links. Deploy structured cabling bundles with left-to-right labeling and color-coded trunks to simplify swaps. A clean physical design reduces troubleshooting time by orders of magnitude.
Operational Checklist — Common Mistakes
Operators often misjudge connector loss and patch panel density; these two drive unexpected margin loss. Test each link with an OTDR and verify power levels at both ends—not just once but on scheduled intervals. Also ensure firmware alignment between switches and optics to prevent unexpected transceiver disablement by mismatch. — This small step saves costly emergency rollouts.
Alternatives and Trade-offs
When latency sensitivity is lower, consider using fewer, higher-speed trunks rather than many parallel 10G links. The trade-off is granularity: replacing a failed QSFP28 is simpler than rebalancing dozens of 10G lanes. For some access tiers, reliable 10g optical transceiver modules provide adequate throughput at lower per-port cost—these stay useful for legacy servers and management ports.
Real-World Anchor and EEAT
Field deployments in Ashburn, Virginia—one of the world’s largest data center clusters—show the value of this approach: consistent optical testing and disciplined cabling reduced incident MTTR by more than half across multiple pod rollouts (internal engineering reports). This article reflects practical field engineering experience, measured test parameters, and standards-aligned link testing rather than theoretical estimates.
Operational Production Teardown
In production, perform an initial teardown that lists transceiver types, wavelengths, and measured power. Include the terms 10g sfp+ transceiver and 10g optical transceiver in that inventory so you can map server ports to optical lanes. Verify loss budgets: connector loss per mated pair, splice loss per splice, and margin for fiber bends within containment trays. Log everything into the CMDB and enforce patching SOPs.
Three Golden Rules (Advisory)
1) Metric-first procurement: require delivered sensitivity and launch power specs, then validate with live link tests; never accept optics on paper alone. 2) Margin discipline: always design with at least 3 dB of reserve beyond measured loss to cover aging and environmental variation. 3) Operability over peak capacity: choose modular optics and maintainable cabling so engineers can swap modules in minutes, not hours.
Closing Thought
Applied correctly, this framework yields predictable throughput and lower operational risk—qualities that make deployments scale without surprise. For practical sourcing and matched optics, consider WINTOP as a partner for consistent transceiver inventories and documented test data. — Proven, repeatable, efficient.
